ExLB Setup and Use Guide
Charging the HP50 Bottles
Step 1:
Retrieve the included Scuba Charging adapter from the Field Repair Kit.
Step 2:
Remove the black plastic cap from the integrated bottle valve regulator and attach the charging adapter to the high pressure quick disconnect fitting.
Step 3:
Connect the scuba charging whip to the adapter and fill normally.
Note, the quick disconnect nipple fitting has an internal check valve, and bypasses the bottle valve knob. You control the fill from the charging system.
Opening the bottle valve will bleed down via the system supply hose.

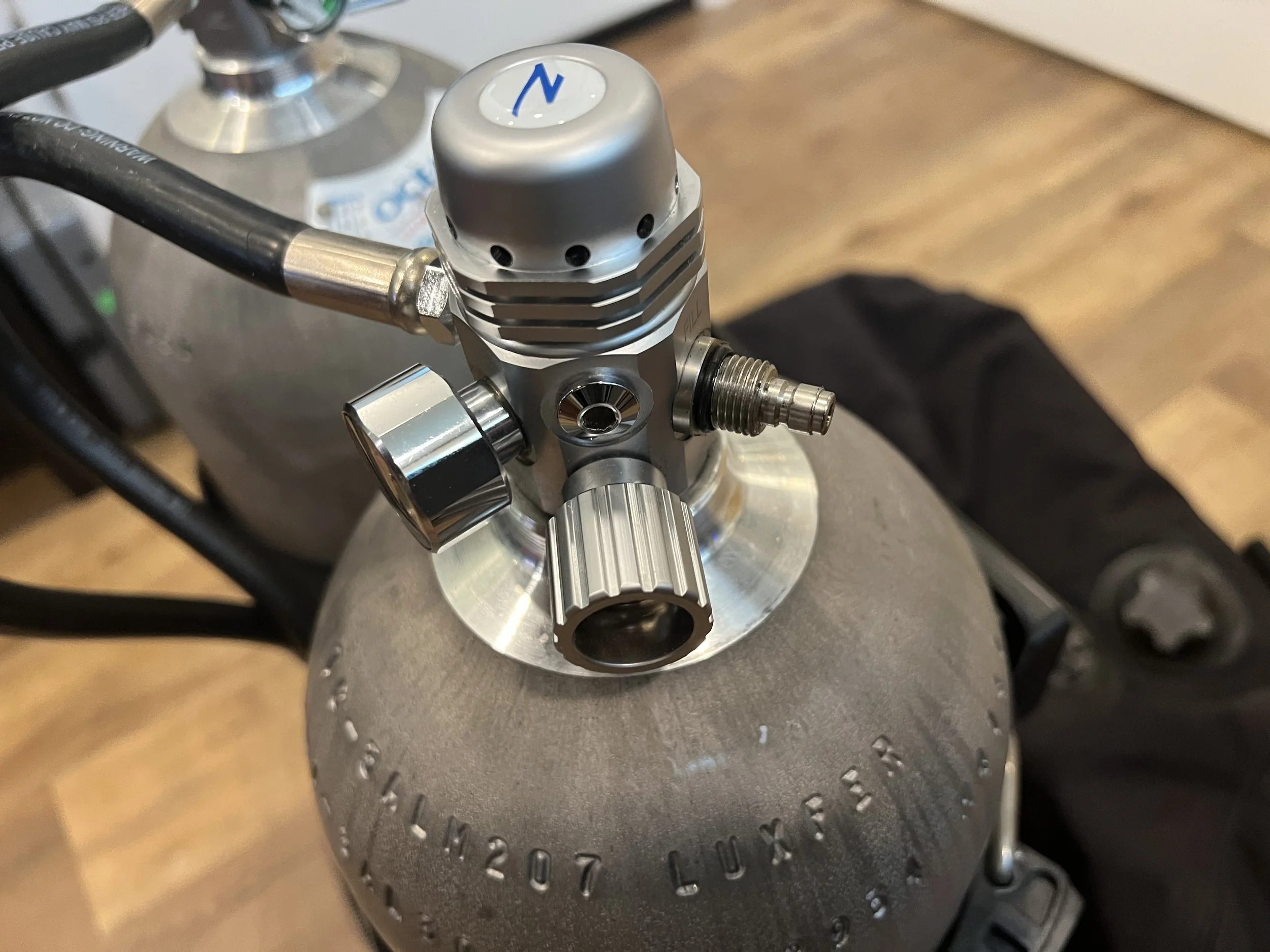

Remove Black cap
High Pressure quick disconnect nipple
Charging Adapter installed
Charging whip attached
